High Pressure Grinding Mill

Posted on Posted in product

High Pressure Grinding Mill

Processing ability: 0-50tph
Max feeding size: 35mm
Product Fineness: 80-325Mesh
Range of application: Barite, quartz, feldspar, mica, calcite, talc, apatite, gypsum, fluorite, limestone, dolomite, diatomite, ceramic soil, clay, marble, granite, fly ash, kaolin, calcium carbonate, slag, bauxite, glass, etc.



Overview

The Handling Materials of High Pressure Grinding Mill:

High Pressure Grinding Mill, also called High Pressure Mill. It is suitable for producing powder in mineral, chemical, building and other industries.

High Pressure Grinding Mill is suitable for grinding of all kinds of materials whose Moh’s hardness is below 9.3, such as calcium carbonate, barite, dolomite, calcite, limestone, kaolin, bentonite, marble, gypsum, quartz, feldspar, clay, talc, fluorite, clay, white mud, mica, refractory material, glass, total about 1000 kinds of materials.

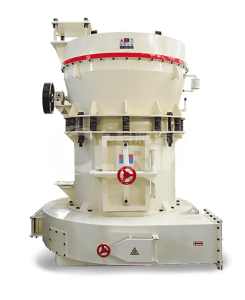

High Pressure Grinding Mill



Internal structure and Working Principle of High Pressure Grinding Mill:

The standard configuration of High Pressure Grinding Mill consists of main unit, reducer, powder classifier, cyclone powder collector, dust cleaner, blower, control cabinet motor and pipes. The optional accessories include crusher, bucket elevator, feeder.



High Pressure Grinding Mill



Big materials are crushed by jaw crusher to the required particle sizes, and carried by bucket elevator to the storage hopper, and are fed evenly and continuously by vibrating feeder into the main unit for grinding. The grinded powder are carried by the airflow from the blower to the classifier to be classified, the particles which meet the fineness enter cyclone collector through pipe, and are separated and collected there. They are discharged at the discharging valve to become finished products; The airflow is sucked to the blower by return pipe on the top of cyclone collector. The whole airflow system is a sealed circulation, and is circulated under positive and negative air pressure.

BENEFIT

Features of  High Pressure Grinding Mill

1.Low production cost, high-performance
Overall for the vertical structure, small footprint, systematic, from raw material delivered to the milling and roughing to final packaging, of an independent production system
2.Good stability, high reliability
Raymond Host transmission device adopts enclosed gear boxes and pulleys, transmission smooth, reliable operation.
3.Perfect particle size
Electrical system adopts centralized control, milling workshop basic enabling unmanned operation.

SPECIFICATIONS

Technology of  High Pressure Grinding Mill

Type Roller Max. feeding size(mm) Fineness of product(mm) Output (t/h) Power of machine(KW) Size(mm)
No. Dimension(mm) Height(mm)
YGM7815 3 260 150 15 0.613-0.033 1-3 18.5 4300*3500*5100
YGM8314 3 270 140 20 0.613-0.033 1.2-4.6 22 5300*4100*5200
YGM9517 4 310 170 25 0.613-0.033 2.1-5.6 37 7100*5900*7900
YGM4121 5 410 210 30 0.613-0.033 2.8-10.5 75 9200*7250*9700
MTM1600 6 440 270 35 0.613-0.033 5-20 132 12550*5700*8350
